Place of Origin:
Beijing, China
Brand Name:
Cisco
Model Number:
WS-C3850-24XS-S
| Attribute | Value |
|---|---|
| Private Mold | NO |
| Products Status | Stock |
| Ports | 24 |
| Transmission Rate | 10/100/1000Mbps |
| Function | LACP, POE, QoS, SNMP, stackable, VLAN Support |
| Communication Mode | Full-Duplex & Half-Duplex |
| Switch Capacity | 256G |
| Product Name | WS-C3850-24XS-S |
| Condition | Brand-new |
| Power Supply | Input:AC100-240V 50/60Hz |
| PoE Ports | 24 Ports |
| Product Description | Gigabit Ethernet Network Switch |
| Warranty | 1 Year |
| Package | Original Box |
| MOQ | 2 Pcs |
Cisco next generation Catalyst WS-C3850-24XS-S is stackable enterprise level switch and integrated with 24 ports of SFP+ 10G Ethernet fiber connection with Flexible Netflow feature.
| Product Code | WS-C3850-24XS-S |
| Enclosure Type | 1 RU |
| Feature Set | IP Base |
| Network SFP uplink module selection | C3850-NM-4-10G C3850-NM-8-10G C3850-NM-2-40G |
| Ports | 24 × 10/100/1000 10G SFP+ Optical ports |
| Maximum stacking number | 9 |
| Stack bandwidth | 480 Gpbs |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Dimensions (WDH) | 44.5 cm x 45 cm x 4.45 cm |

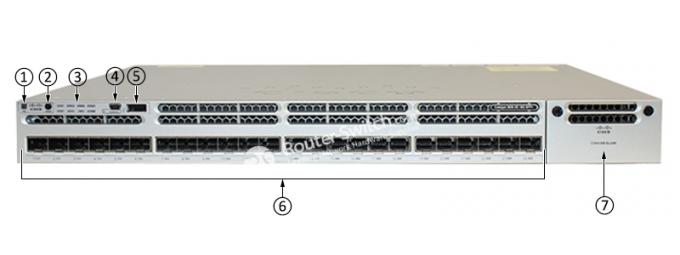

Figure 1 shows the front panel of the Cisco WS-C3850-24XS-S with blank network module.
① UID (blue beacon) | ⑤ USB Type A storage port
② Mode button | ⑥ 24 × 10/100/1000 10G SFP+ Optical ports
③ Status LEDs | ⑦ Network SFP uplink module slot
④ USB mini-Type B (console) port
Figure 2 shows the back panel of the Cisco WS-C3850-24XS-S.
① Ground connector | ⑤ Power supply modules
② CONSOLE (RJ-45 console port) | ⑥ Fan module
③ StackWise port connector | ⑦ MGMT port
④ StackPower connector | ⑧ Reset Button
Figure 3 shows the StackWise-480 and StackPower connectors.
This switch with IP Base feature set can only stack with other Catalyst 3850 Series IP Base switches.
