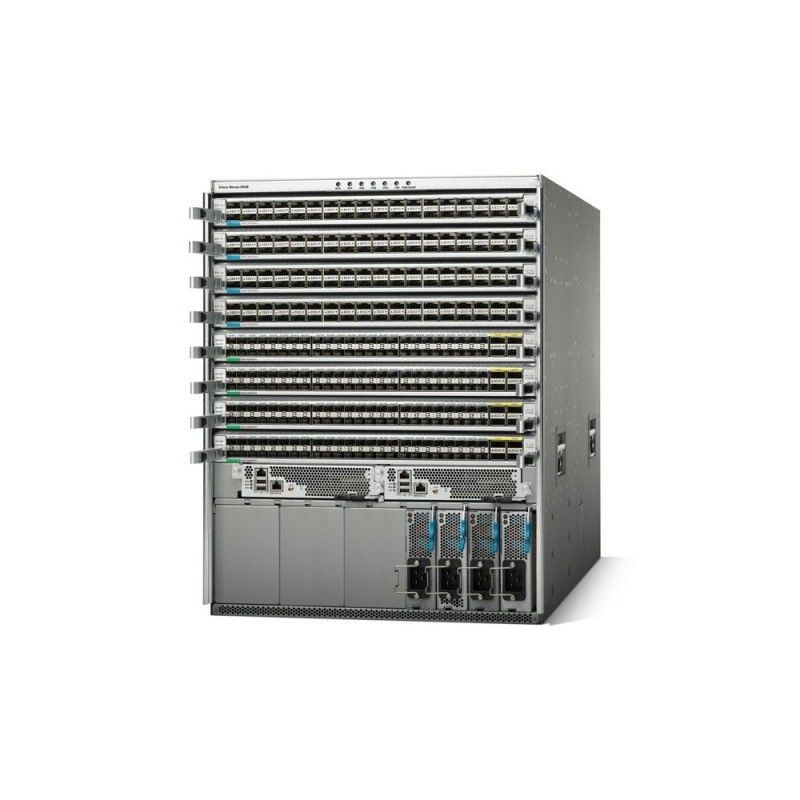

Nexus 9508 Core Chassis asli baru dengan 8 slot kartu line Switch N9K-C9508
The N9K-C9508 is the Nexus 9508 Chassis with 8 line card slots. The Cisco Nexus 9500 platform, part of the Cisco Nexus 9000 Series, offers three modular options: the Cisco Nexus 9504 Switch with 4 slots, the Cisco Nexus 9508 Switch with 8 slots, and the Cisco Nexus 9516 Switch with 16 slots.
All three switches use the same supervisor, system controller, power supplies, and line cards. The Cisco Nexus 9500 platform consists of Layer 2 and 3 nonblocking Ethernet switches with backplane bandwidth of up to 115.2 Terabits per second (Tbps).
The Cisco Nexus 9504, 9508, and 9516 Switches support 1, 10, 25, 40, 50, and 100 Gigabit Ethernet interfaces through a comprehensive selection of modular line cards. Configurable with up to 2304 x 10 Gigabit Ethernet ports, 2048 x 25 Gigabit Ethernet ports, 576 x 40 Gigabit Ethernet ports, 1024 x 50 Gigabit Ethernet ports, or 512 x 100 Gigabit Ethernet ports, they provide ample capacity for both access- and aggregation-layer deployments.
| Attribute | Value |
|---|---|
| Private Mold | NO |
| Products Status | Stock |
| Ports | ≥ 48 |
| Transmission Rate | 10/100/1000Mbps |
| Function | LACP, POE, QoS, SNMP, stackable, VLAN Support |
| Communication Mode | Full-Duplex & Half-Duplex |
| Switch Capacity | 128G |
| Product Name | N9K-C9508 |
| Condition | Brand-new |
| Warranty | 1 Year |
| PoE Ports | 48 PORTS |
| Power Supply | Input: AC100-240V 50/60Hz |
| Product Description | 48 Spine line card |
Physical Dimensions: 22.70 x 17.50 x 31.76 in. (57.78 x 44.50 x 80.67 cm)
Weight (chassis): 150 lb (68.2 kg)
A pair of redundant supervisor modules manages all switch operations using a state-synchronized, active-standby model. The supervisor accepts an external clock and supports management through multiple ports - two USB ports, a serial port, and a 10/100/1000-Mbps Ethernet port. All supervisors support Cisco ACI or NX-OS deployments. Redundant supervisors should be of the same type within a chassis.
| Specification | N9K-SUP-A | N9K-SUP-A+ | N9K-SUP-B | N9K-SUP-B+ |
|---|---|---|---|---|
| Processor | 4 core, 4 thread 1.8GHz x86 | 4 core, 8 thread 1.8GHz x86 | 6 core, 12 thread 2.2GHz x86 | 6 core, 12 thread 1.9GHz X86 |
| DRAM | 16GB | 16GB | 24GB | 32GB |
| SSD | 64GB | 64GB | 256GB | 256GB |
| Weight | 4.84 lb (2.2 kg) | 5.2 lb (2.37 kg) | 6.00 lb (2.72 kg) | 5.3 lb (2.39 kg) |
| Typical power | 69 W | 69 W | 75 W | 75 W |
| Maximum power | 80 W | 80 W | 80 W | 90 W |
| MTBF hours | 312,070 | 414,240 | 292,110 | 421,040 |
| Hot swappable | Yes | |||
| Airflow | Port-side intake | |||

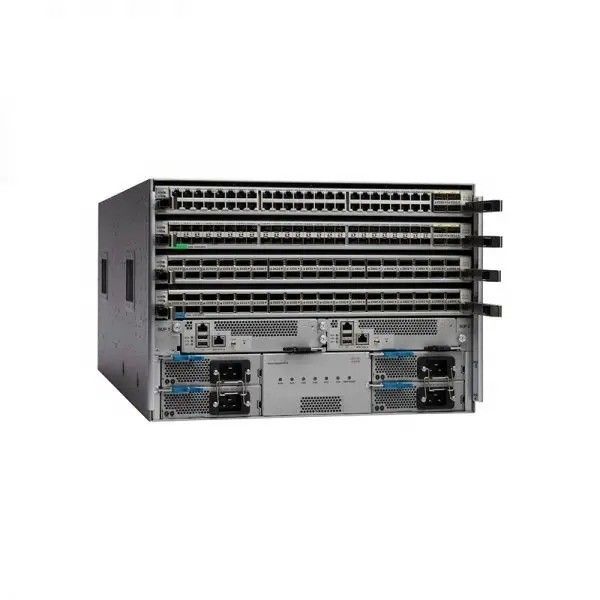

| Feature | N9K-C9508 | N9K-C9504 |
|---|---|---|
| Chassis |
|
|
| Physical (H x W x D) | 22.70 x 17.50 x 31.76 in. (57.78 x 44.50 x 80.67 cm) | 12.25 x 17.50 x 33.15 in. (31.1 x 44.50 x 84.20 cm) |
| Weight (chassis) | 150 lb (68.2 kg) | 84 lb (38.2 kg) |
