Original C3560X series 24-Port PoE Gigabit LAN Base Network Switch WS-C3560X-24P-L
The Cisco® Catalyst® 3750-X and 3560-X Series Switches are an enterprise-class lines of stackable and
standalone switches, respectively. These switches provide high availability, scalability, security, energy efficiency,
and ease of operation with innovative features such as Cisco StackPower (available only on the Catalyst 3750‑X),
IEEE 802.3at Power over Ethernet Plus (PoE+) configurations, optional network modules, redundant power
supplies, and Media Access Control Security (MACsec) features. The Cisco Catalyst 3750-X Series with
StackWise® Plus technology provides scalability, ease of management and investment protection for the
evolving business needs. The Cisco Catalyst 3750-X and 3560-X enhance productivity by enabling applications
such as IP telephony, wireless, and video for borderless network experience.
|
Manufacturer Part Number
|
WS-C3560X-24P-L
|
|
Product Type
|
Switch - 24 ports - Managed
|
|
Form Factor
|
Rack mountable - 1U
|
|
Switch Ports
|
24 x 10/100/1000 Ethernet Ports Ethernet Ports
|
|
Power Over Ethernet (PoE)
|
Yes
|
|
Performance
|
Switching capacity : 160 Gbps
|
|
Remote Management Protocol
|
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
|
|
Authentication Method
|
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad
(LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
|
|
DRAM Memory
|
256 MB
|
|
Flash Memory
|
64 MB Flash
|
|
Status Indicators
|
Port status, link activity, port transmission speed, port duplex mode, power, system
|
| |
|
|
Interfaces
|
24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
|
|
Expansion Slots Total (Free)
|
1 ( 1 ) x Expansion Slot
|
| |
|
|
Power Device
|
Power supply - redundant - plug-in module
|
|
Installed Qty
|
1 (installed) / 2 (max)
|
|
Power Redundancy
|
Optional
|
|
Power Redundancy Scheme
|
1+1 (with optional power supply)
|
|
Voltage Required
|
AC 120/230 V ( 50/60 Hz )
|
|
Features
|
Redundant Power System (RPS) connector
|
| |
|
|
Width
|
44.5 cm
|
|
Depth
|
46 cm
|
|
Height
|
4.5 cm
|
|
Weight
|
7.1 kg
|
Network Module

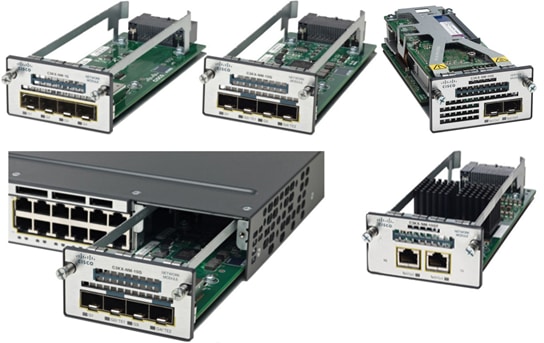

Figure 1 shows various Network Modules with Four GbE, Two 10GbE SFP+ Interfaces, Two 10GB-T and Service Module
with Two 10GbE SFP+ Interfaces.
Figure 1.
Network Modules with Four GbE, Two 10GbE SFP+ Interfaces, Two 10GB-T and Service Module with Two 10GbE
SFP+ Interfaces

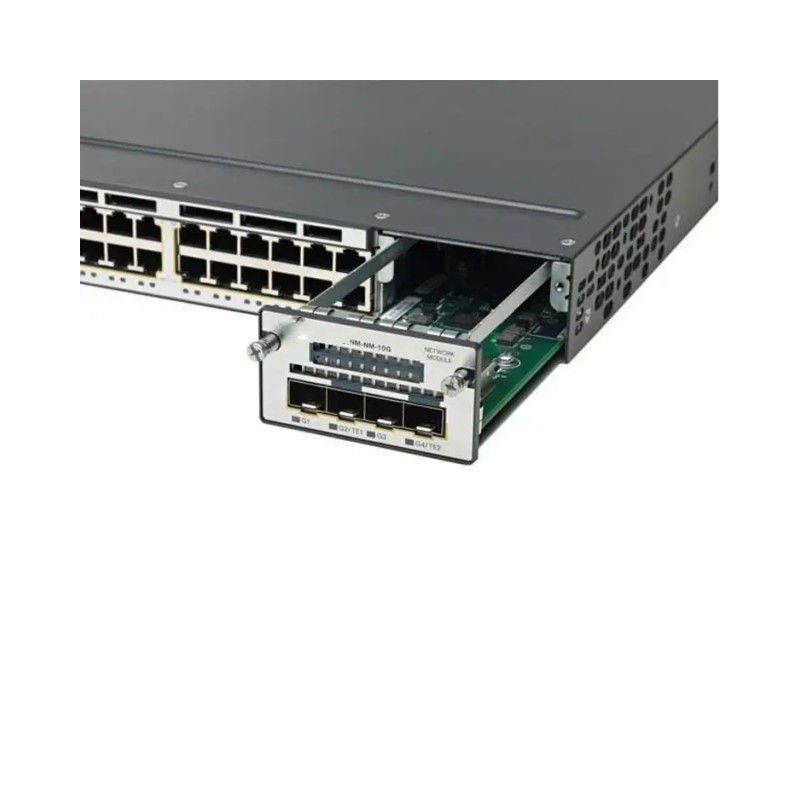

The Cisco Catalyst 3750-X Series and 3560-X Series Switches support four optional network modules for uplink ports.
The default switch configuration doesn’t include the uplink module; at the time of switch purchase the customer has the
flexibility to choose from the network modules described in Table 2.
Table 2. Network Module Numbers and Descriptions
| Product Number |
Product Description |
| C3KX-NM-1G |
Four GbE port network module |
| C3KX-NM-10G |
Two 10GbE SFP+ ports network module with four physical ports with two SFP+ and two regular SFP ports |
| C3KX-NM-10GT |
Two 10GB-T ports network module |
| C3KX-SM-10G |
Service Module with two 10GbE SFP+ ports network module for Netflow and MACsec encryption |
The SFP+ interface supports both 10GbE and GbE port, allowing customers to use their investment in GbE SFP and
upgrade to 10GbE when business demands change, without having to do a comprehensive upgrade of the access switch.
The four uplink modules are hot swappable.
