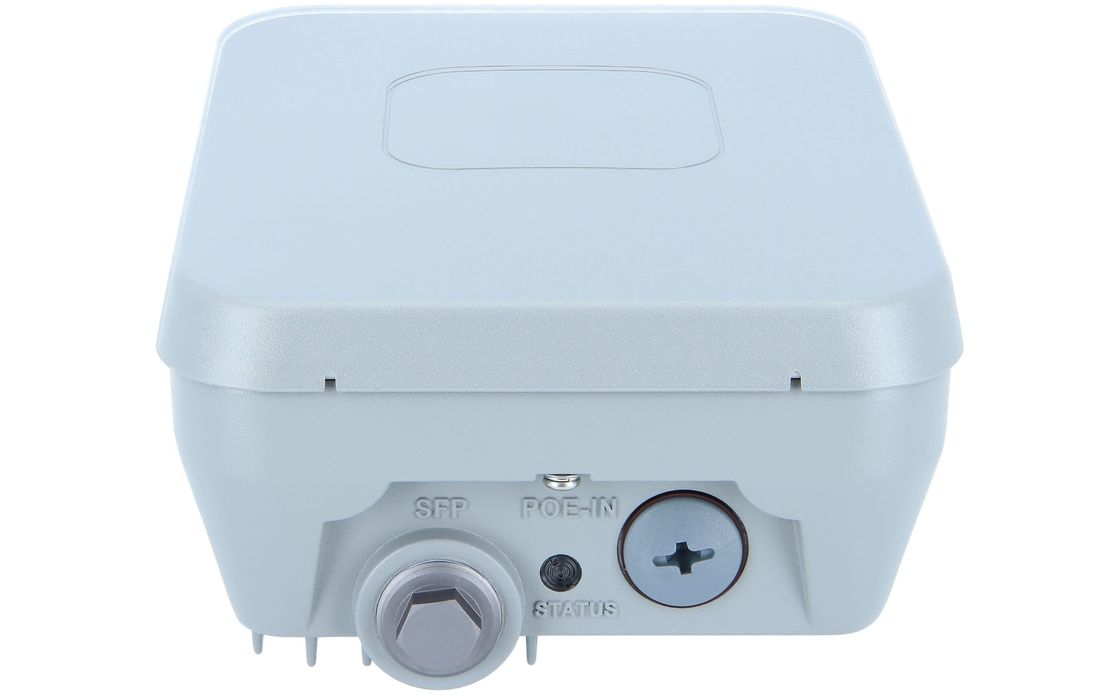

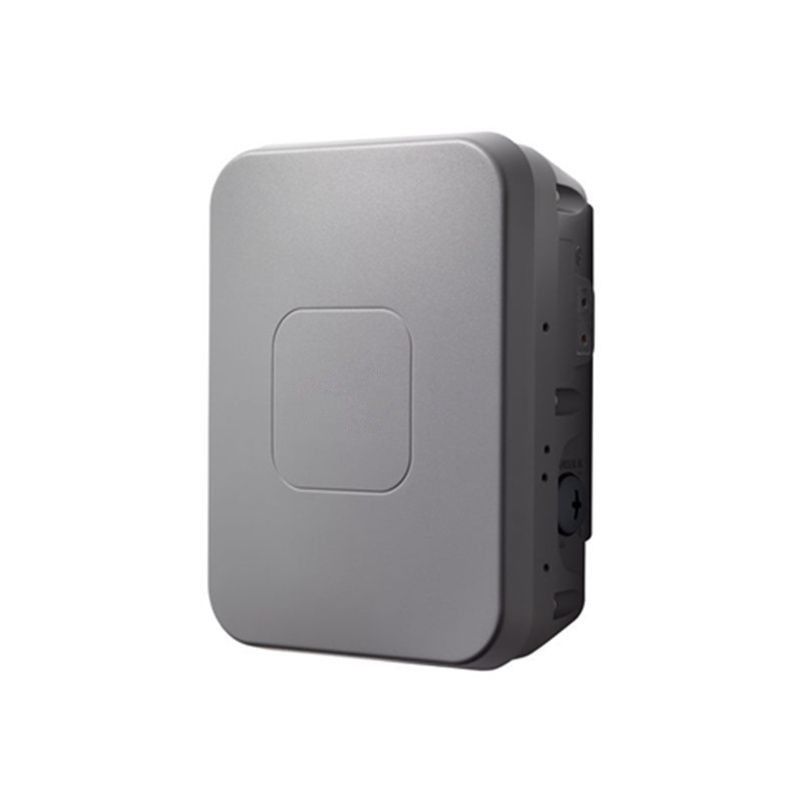

1562E Series Cisco Outdoor Wireless AP With External Antenna AIR-AP1562E-E-K9

Cisco 1562E series Outdoor Low-Profile Access Point with External Antenna AIR-AP1562E-E-K9

Cisco AIR-AP1562E-E-K9 Outdoor Access Point offers the latest 802.11ac Wave 2 functions in a rugged, low-profile housing that service providers and enterprises can deploy easily. Ideal for applications requiring rugged outdoor Wi-Fi coverage, the Cisco Aironet 1560 Series Access Points offer the latest IEEE 802.11ac Wave 2 radio standard in a compact, aesthetically pleasing, easy-to-deploy package.

• 2x2 MIMO with two spatial streams
• Multi- and single-user MIMO
• Maximal ratio combining (MRC)
• 802.11ac beamforming (transmit beamforming)
• 20-, 40-, and 80-MHz channels
• PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
• Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
• 802.11 dynamic frequency selection (DFS)
• Cyclic-shift-diversity (CSD) support

• WAN port 10/100/1000BASE-TEthernet, autosensing (RJ-45), PoE in SFP port (fiber or electrical)
• Management console port (RJ-45)
• Multicolor LED
• DC power input
• Reset button

Cisco AIR-AP1562E-E-K9 has these benefits:

• 802.11ac Wave 2 radio - Provides up to 1.3-Gbps data rates with 3 x 3 Multiple Input, Multiple Output (MIMO) and up to three spatial streams.
• Multiuser MIMO (MU-MIMO) - Allows transmission of data to multiple 802.11ac Wave 2-capable clients simultaneously to improve client experience; prior to 802.11ac Wave 2, access points could transmit data to only one client at a time, typically referred to as single-user MIMO.
• Flexible deployment modes - Allows for deployment of the 1560 in a variety of ways including point-to-point and mesh networks; it can also be deployed with the Cisco Mobility Express Solution, which is ideal for small to medium-sized deployments that supports multiple access points without a physical controller; all deployment modes are easy to set up and configure.
• Small Form-Factor Pluggable (SFP) port - Supports optical fiber-based network connectivity for remote locations.
