Place of Origin:
Beijing, Beijing,China
Brand Name:
Ruckus
Model Number:
901-R750-WW00
| Max. LAN Data Rate | 1000Mbps |
| With Modem Function | NO |
| Standards And Protocols | Wi-Fi 802.11ac, Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11n |
| Wi-Fi Supported Frequency | 2.4G & 5G |
| Supports WDS | No |
| Supports WPS | No |
| Wi-Fi Transmission Standard | 802.11b |
| Wired Transfer Rate | None |
| 2.4G Wi-Fi Transmission Rate | 300 Mbps |
| Encryption Type | WPA2, WPA, WEP |
| Private Mold | NO |
| Products Status | New |
| Type | Wired and Wireless |
| Application | Industrial Applications, Indoor |
| Function | FireWall, QoS, VPN |
| LAN Ports | 2 |
| WAN Ports | 1 |
| 5G Wi-Fi Transmission Rate | 1300Mbps |
| Product name | INDOOR ACCESS POINT |
| Model | 901-R750-WW00 |
| Brand | Ruckus |
| Warranty | 1 Year |
| Color | White |
The Ruckus 901-R750-WW00 is a premier indoor Wi-Fi 6 (802.11ax) access point, built for high-density environments demanding exceptional wireless performance and reliability.
Deliver blazing speeds up to 3.5 Gbps with dual-band 4x4:4 MU-MIMO and OFDMA. This handles hundreds of concurrent users effortlessly, making it ideal for crowded spaces like offices, schools, or public venues, often surpassing older Cisco Wireless AP solutions in sheer capacity and efficiency.
Benefit from intelligent Wi-Fi features: BeamFlex+ ™ actively optimizes signal strength and range, while ChannelFly ® ensures congestion-free channels. This results in consistent, superior coverage and reliability, a significant advantage over many basic network setups, including those centered on a general Cisco Network Switch.
Future-proof your network with integrated Bluetooth Low Energy (BLE) and Zigbee radios. The R750 unifies Wi-Fi and IoT devices, simplifying deployment and reducing infrastructure costs for smart applications.
Enjoy flexible management options, from easy controller-less Ruckus Unleashed for smaller needs to scalable SmartZone or Ruckus Cloud for enterprise-level control, ensuring adaptability as your business grows.
For a comprehensive understanding of its capabilities, please refer to the detailed parameters below:
| Parameter Category | Parameter | Specification |
|---|---|---|
| Wireless | ||
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) | |
| Frequency Bands | Dual-band (2.4 GHz & 5 GHz) | |
| MIMO Configuration | 4x4:4 on both 2.4 GHz and 5 GHz | |
| Maximum Data Rate (5 GHz) | Up to 2400 Mbps | |
| Maximum Data Rate (2.4 GHz) | Up to 1148 Mbps | |
| Concurrent Clients | Up to 1024 | |
| Antenna Technology | Patented Ruckus BeamFlex+™ Adaptive Antennas | |
| Wired Interfaces | ||
| Ethernet Port 1 | 1 x 2.5 Gigabit Ethernet (2.5GbE) | |
| Ethernet Port 2 | 1 x 1 Gigabit Ethernet (1GbE) | |
| Power over Ethernet (PoE) | 802.3at (PoE+) | |
| IoT Radios | ||
| Integrated BLE | Yes | |
| Integrated Zigbee | Yes | |
| USB Port | 1 x USB 2.0 (for additional IoT modules/expansion) | |
| Physical | ||

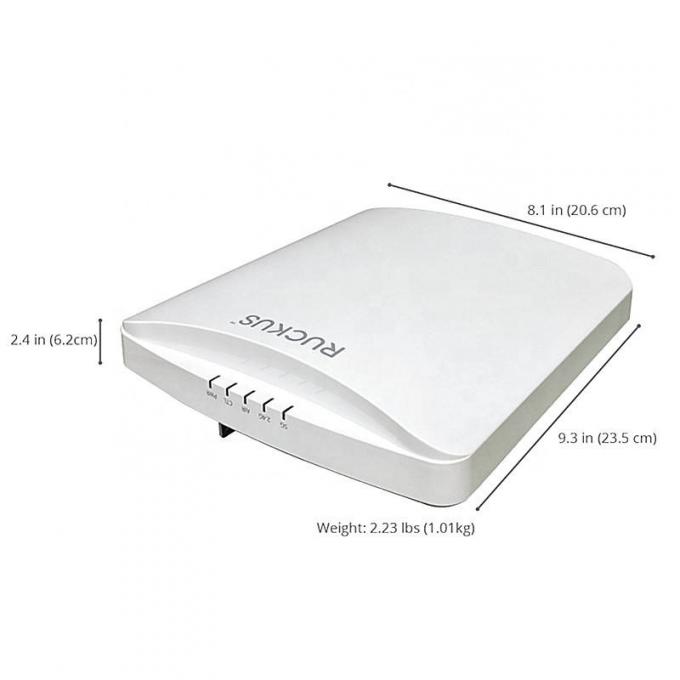

| Dimensions (WxDxH) | 23.5cm L x 20.6cm W x 6.2cm H (9.3in (L) x 8.1in (W) x 2.4in (H)) | |
| Weight | Approx. 1.05 kg (2.3 lbs) | |
| Mounting | Ceiling, Wall (mounting bracket included) | |
| Power | ||
| Power Consumption | Max 26W (PoE+) | |
| Power Source | 802.3at PoE+ or optional DC power adapter (sold separately) | |
| Environmental | ||
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) | |
| Management | ||
| Deployment Modes | SmartZone, Unleashed, ZoneDirector, Ruckus Cloud, Standalone | |
| Part Number | ||
| Worldwide Model | 901-R750-WW00 | |
