Place of Origin:
Beijing, China
Brand Name:
Cisco
Certification:
FCC
Model Number:
C9120AXE-H

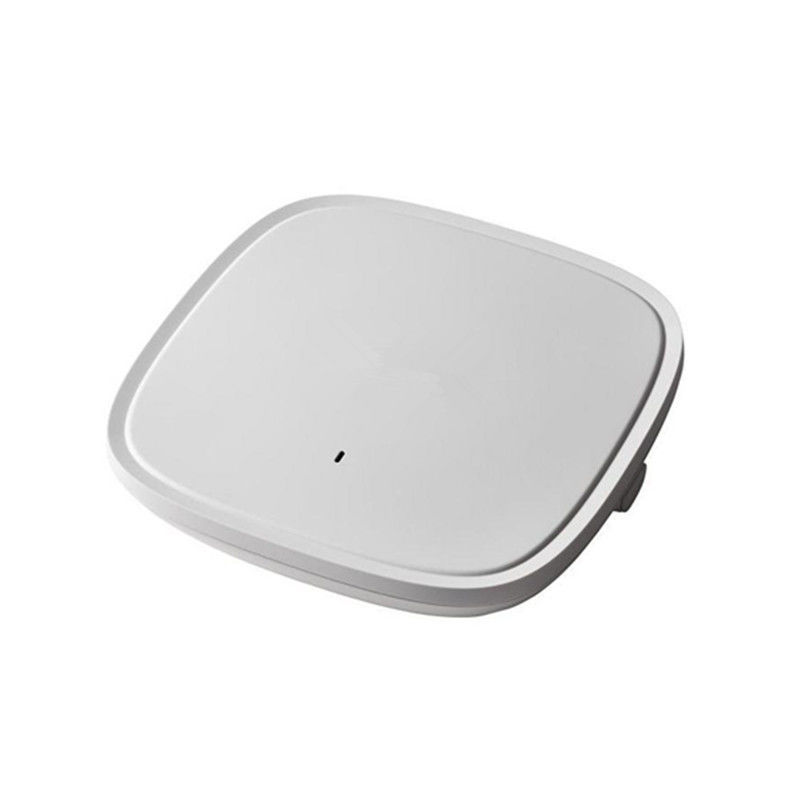

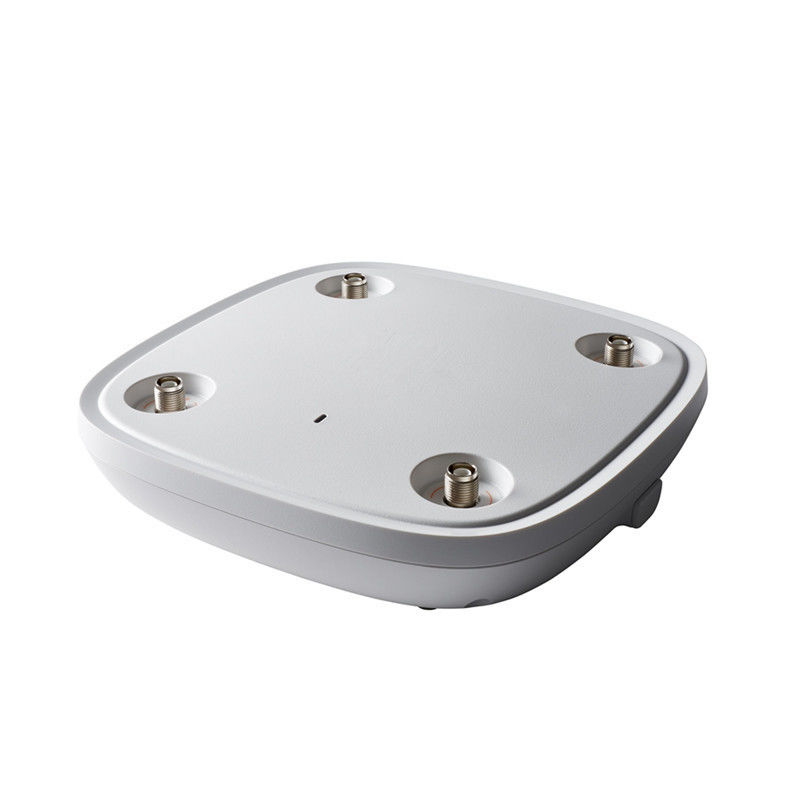

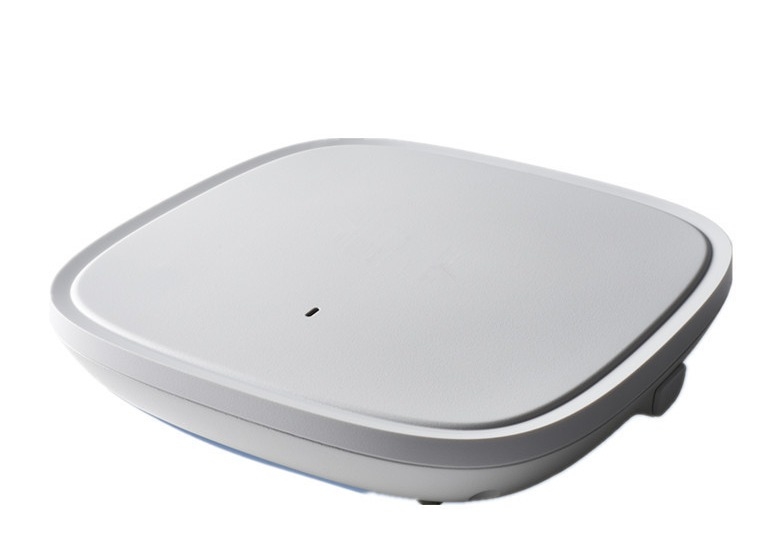

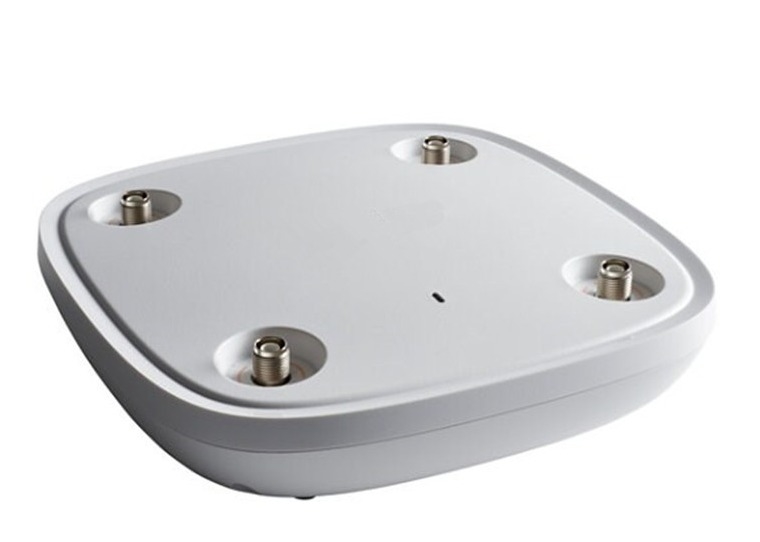

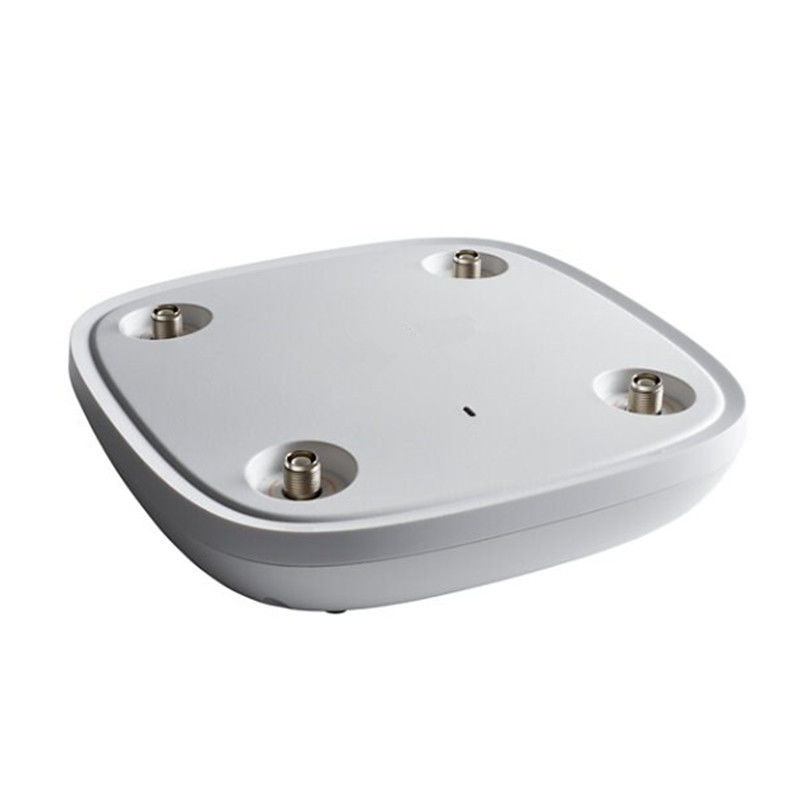

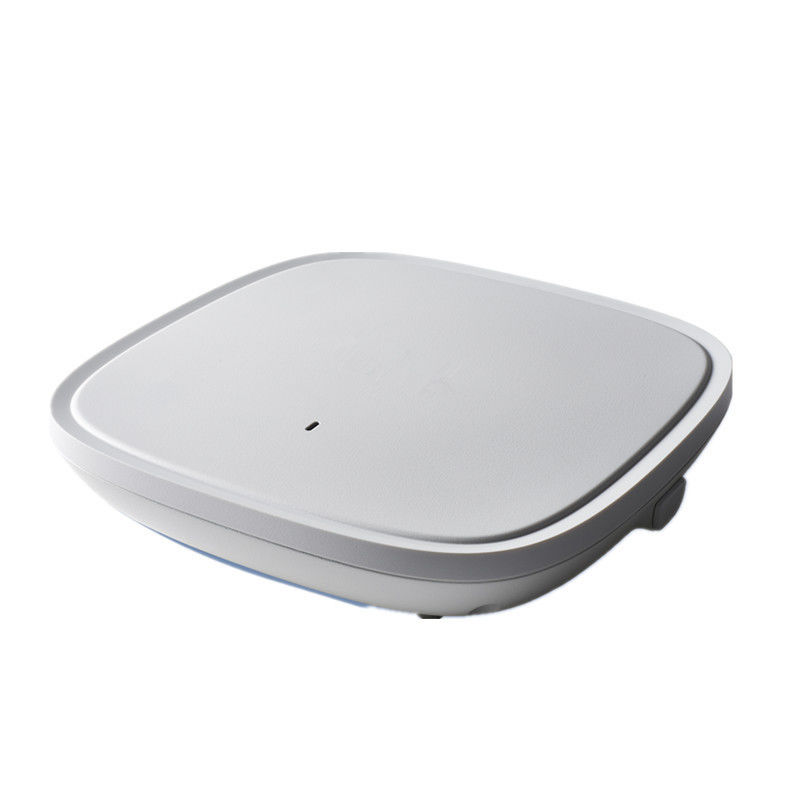

The Cisco Catalyst 9120 Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent.Wi-Fi 6; 4x4:4 MIMO, HDomain.
Table 1 shows the Quick Specs.
| Product Code | C9120AXE-H |
| Description | Cisco Catalyst 9120AXE Series, H Domain |
| Software |
Cisco Unified Wireless Network Software Release 8.9.x or later Cisco IOSXE Software Release 16.11 with AP Device Pack, or later |
| Supported wireless LAN controllers |
Cisco Catalyst 9800 Series Wireless Controllers Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| Dimensions (WxLxH) | 8.5 x 8.05x 2.0"(21.6 x 21.6 x 5.1 cm) |
| System memory |
2048 MB DRAM 1024 MB flash |
| Frequency band and 20-MHz operating channels |
H (H regulatory domain): 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels |
Cisco AP 9120 Series provides these features:
Wi-Fi 6 (802.11ax)
Cisco RF ASIC
Uplink/downlink OFDMA
MU-MIMO technology
BSS coloring
Target wake time
Intelligent Capture
Flexible Radio Assignment
Dual 5-GHz radio support
Smart antenna connector
Cisco Mobility Express
Multigigabit Ethernet support
Bluetooth 5
Container support for applications
Apple Features
